TRUST IN THE NORTH

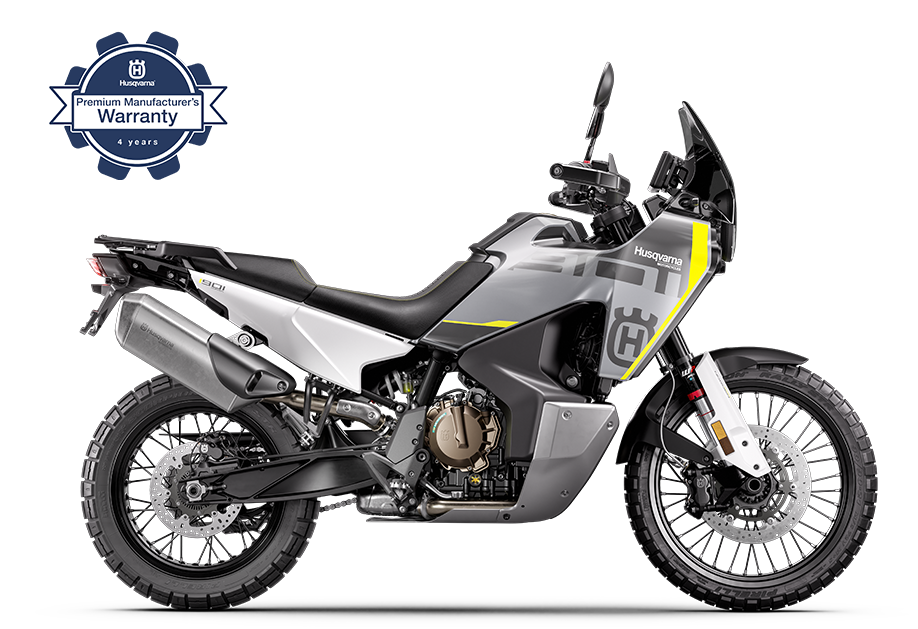

Setting a high standard in the adventure motorcycle segment, the Norden 901 allows touring enthusiasts to discover the hidden corners of the globe. Excelling on-road and highly capable off-road, the long-distance travel machine is designed to enhance rider comfort on longer rides. Powered by a smooth and torquey 889 cc parallel twin engine, which is housed inside a lightweight, steel trellis frame, the Norden 901 is complete with premium components, offering maximum performance and reliability. Explore the world your way with the Norden 901.
ENGINE
- Primary Drive: 39:75
- Torque: 100 Nm
-
Transmission: 6-speed
- Battery Capacity: 10 Ah
-
Cooling: Liquid cooled with water/oil heat exchanger
- Secondary Gear Ratio: 16:45
-
Power in kW: 77 kW
-
Starter: Electric starter
-
Stroke: 68.8 mm
-
Bore: 90.7 mm
-
Clutch: Cable operated PASC slipper clutch
-
CO2 Emissions: 103 g/km
- Compression Ratio: 13.5
-
Displacement: 889 cm³
-
EMS: Bosch EMS with RBW
-
Design: 2-cylinder, 4-stroke, parallel twin
-
Fuel Consumption: 4.5 l/100 km
- Fuel-Mixture Generation: DKK Dellorto (Throttle body 46mm)
-
Lubrication: Forced oil lubrication with 2 oil pumps
CHASSIS
-
Weight (Without Fuel): 204 kg
-
Tank Capacity (Approx): 19 l
- Wheelbase: 1513 mm
-
ABS: Bosch 9MB Two Channel ABS (disengageable)
-
Front Brake Disc Diameter: 320 mm
-
Rear Brake Disc Diameter: 260 mm
-
Front Brake: 2x radially mounted 4 piston calliper
-
Rear Brake: 2 piston floating calliper
-
Chain: 520 X-Ring
-
Frame Design: Chromium-Molybdenum-Steel frame using the engine as stressed element, powder coated
-
Front Suspension: WP APEX 43
-
Ground Clearance: 252 mm
-
Rear Suspension: WP APEX Monoshock
- Seat height: 859/879 mm
-
Steering Head Angle: 64.2 °
- Rear Subframe Design: Chromium-Molybdenum-Steel trellis, powder coated
-
Suspension Travel (Front): 220 mm
-
Suspension Travel (Rear): 215 mm
- Wheels: 2.50 x 21"; 4.50 x 18"
- Wheels: Spoked wheels with aluminium tubeless rims
- Wheelbase: 1.513 ± 15 mm
