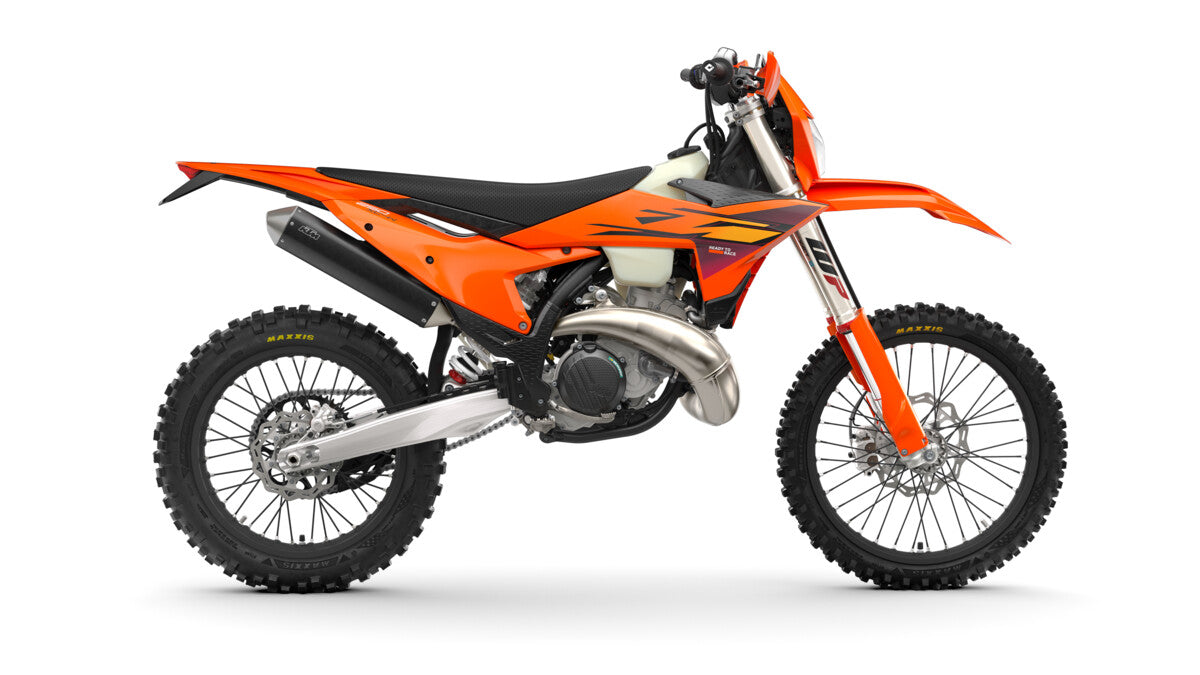

2026 KTM 250 XC-W

RACE TO NEW HEIGHTS.

The KTM 250 XC-W presents enduro riders with the ultimate combination of power and rideability, setting the benchmark in the highly contested E1 class. Thanks to its groundbreaking frame, updated closed-cartridge suspension, and epic TBI technology, it remains an extreme machine that continues to reach new heights. How far you push, though, is up to you.

ENGINE

• Design: 1-cylinder, 2-stroke engine
• Displacement: 249 cm³
• Transmission: 6-speed
• Fuel-mixture generation: Keihin EFI, Throttle body 39 mm
• EMS: Vitesco Technologies EMS
• Clutch primary drive teeth: 72
• Primary drive: 26:72
• Clutch: Wet, DDS multi-disc clutch, Brembo hydraulics
• Engine cylinder: Single cylinder
• Engine stroke: 2-stroke

CHASSIS

• Frame design: Central double-cradle-type 25CRMO4 steel
• Front brake: Disc brake
• Rear brake: Disc brake
• Rear subframe design: Aluminum-reinforced Polyamide
• Chain: 520 X-Ring

SUSPENSION

• Front suspension: WP XACT-USD, Ø 48 mm
• Rear suspension: WP XPLOR shock absorber with PDS
• Suspension travel (front): 300 mm
• Suspension travel (rear): 310 mm
• Front suspension adjustment: Compression and rebound adjustable
• Rear suspension setting: Compression and rebound adjustable
• Rear suspension addition: Preload adjuster

DIMENSIONS

• Seat height: 963 mm
• Ground clearance: 347 mm
• Tank capacity: 9 L
• Weight (without fuel): 104.4 kg
