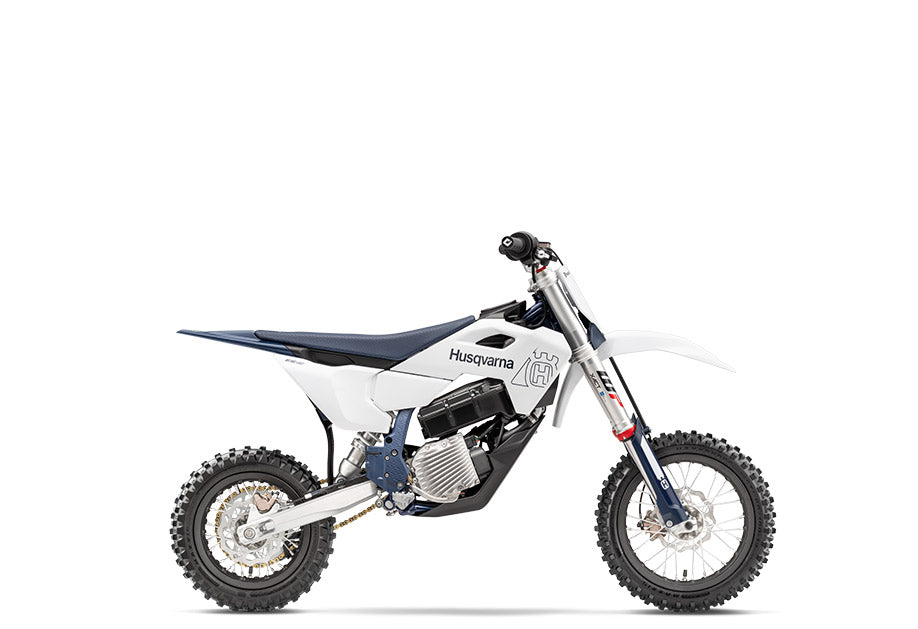

2027 Husqvarna EE 5

REDEFINING MOTOCROSS

The new generation EE 5 underlines the commitment made by Husqvarna Mobility to continue developing pioneering, e-powered motocross machinery. Already a popular and versatile model thanks to its six ride modes and adjustable seat height, the exciting EE 5 is now water cooled to extend its running time by 30% and to maintain a consistent power delivery. Assembled with a comprehensive list of premium components and beautifully crafted to the highest standards, the EE 5 is a fully fledged motocross machine capable of competing against its 50 cc fuel-powered competition. With no notable engine noise and zero carbon emissions, the innovative EE 5 is more accepted in areas sensitive to sound emissions, making riding offroad much more accessible to younger riders.

ENGINE

• Rated output: 2 kW / 3,200 rpm

• Torque: 13.8 Nm
• Transmission: Single speed transmission
• Traction battery: Lithium-Ion KTM PowerPack
• Charger line voltage: 80-240 V/50-60 Hz
• Charging input: Quick charging 5 A @ 230 V (AC)
• Charging power: 900 W
• Charging time 100%: 70 minutes
• Charging time 80%: 45 minutes
• Cooling: Liquid cooled
• Energy content: 0.907 kWh
• Electric motor: 48 V - BLDC motor with outer rotor
• Secondary gear ratio: 08:46
• Max. motor speed: 6000 rpm
• Max. power: 5 kW / 3,900 rpm

CHASSIS

• Wheelbase: 1028 mm
• Front brake disc diameter: 160 mm
• Rear brake disc diameter: 160 mm
• Front brake: Disc brake
• Rear brake: Disc brake

• Chain: 415, Non-sealed
• Frame design: Chrome-molybdenum steel central-tube frame
• Front suspension: XACT 35 WP Upside-Down fork, Ø 35 mm
• Ground clearance: 259 mm
• Rear suspension: XACT WP mono shock
• Seat height: 674 mm
• Steering head angle: 66 °
• Rear subframe design: Glass fibre reinforced plastic
• Suspension travel (front): 205 mm
• Suspension travel (rear): 193 mm
• Tyre dimensions: 60/100; 2.75/10
• Weight: 40.5 kg

• Wheels: 1.50 x 12"; 1.60 x 10"
• Wheelbase: 1028 ± 10 mm
