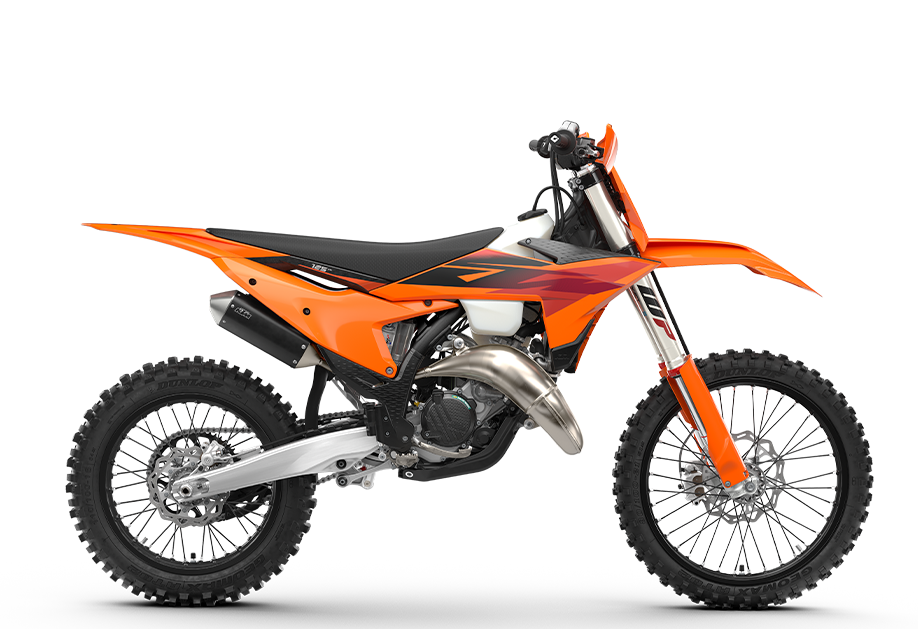

2027 KTM 125 XC

HERE COMES THE 'BRAAAP!'

Years of hard‑charging Racing and Development have shaped the KTM 125 XC into one of the most aggressive 2‑stroke weapons in GNCC competition. Light, responsive, and built to be ridden flat‑out, the KTM 125 XC defines what a modern XC screamer should be.

ENGINE

• Design: 1-cylinder, 2-stroke engine
• Displacement: 124.8 cm³
• Transmission: 6-speed
• Fuel-mixture generation: Keihin EFI, Throttle body 39 mm
• EMS: Vitesco Technologies EMS
• Clutch primary drive teeth: 73
• Primary drive: 23:73
• Clutch: Wet, multi-disc DS clutch, Brembo hydraulics
• Engine cylinder: Single cylinder
• Engine stroke: 2-stroke

CHASSIS

• Frame design: Central double-cradle-type 25CRMO4 steel
• Front brake: Disc brake
• Rear brake: Disc brake
• Rear subframe design: Aluminum-reinforced Polyamide
• Chain: 520 X-Ring

SUSPENSION

• Front suspension: WP XACT cartridge Ø 48 mm
• Rear suspension: WP XACT monoshock with linkage
• Suspension travel (front): 300 mm
• Suspension travel (rear): 300 mm

DIMENSIONS

• Seat height: 954 mm
• Ground clearance: 359 mm
• Tank capacity: 9 L
• Weight (without fuel): 94.8 kg
