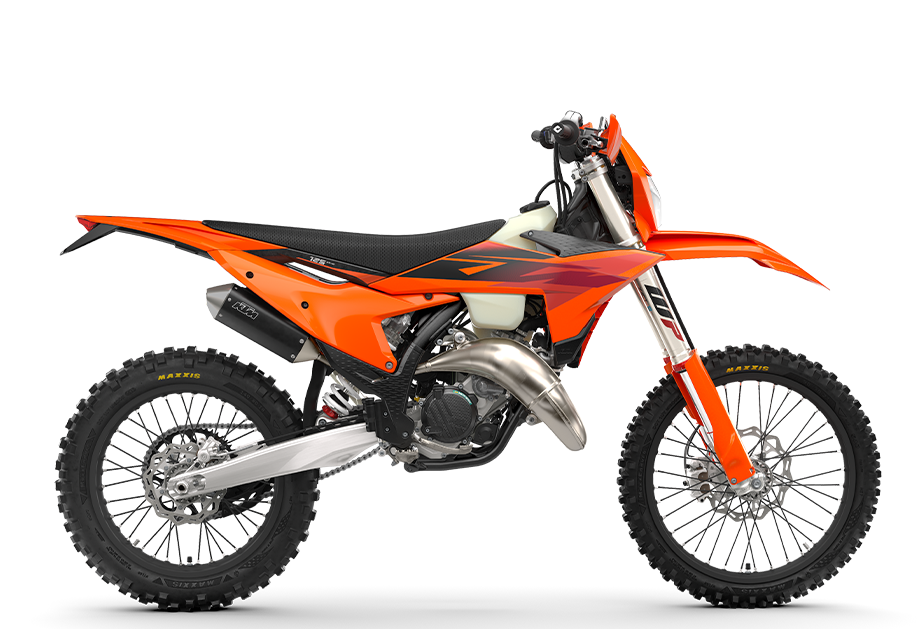

2027 KTM 125 XC-W

FULL GAS

Looking to regain its title in the 125cc Junior Enduro classes, the KTM 125 XC-W represents the pinnacle of 2-stroke engine technology, aimed at ambitious junior enduro racers and hobby riders asking for a performance-focused machine - and first-place trophies.

*This is a competition-only model with no street-legal homologation.

ENGINE

• Design: 1-cylinder, 2-stroke engine
• Displacement: 124.8 cm³
• Transmission: 6-speed
• Fuel-mixture generation: Keihin EFI, Throttle body 39 mm
• EMS: Vitesco Technologies EMS
• Clutch primary drive teeth: 73
• Primary drive: 23:73
• Clutch: Wet, multi-disc DS clutch, Brembo hydraulics
• Clutch type: DS multi-disc wet clutch
• Clutch operation: Brembo hydraulics
• Engine cylinder: Single cylinder
• Engine stroke: 2-stroke

CHASSIS

• Frame design: Central double-cradle-type 25CRMO4 steel
• Front brake: Disc brake
• Rear brake: Disc brake
• Rear subframe design: Aluminum-reinforced Polyamide
• Chain: 520, non-sealed

SUSPENSION

• Front suspension: WP XACT-USD (AER), Ø 48 mm
• Rear suspension: WP XACT monoshock with linkage
• Suspension travel (front): 310 mm
• Suspension travel (rear): 300 mm
• Front suspension adjustment: Compression and rebound adjustable
• Rear suspension setting: Compression and rebound adjustable, preload adjuster

DIMENSIONS

• Seat height: 963 mm
• Ground clearance: 347 mm
• Tank capacity: 9 L
• Weight (without fuel): 96.2 kg
