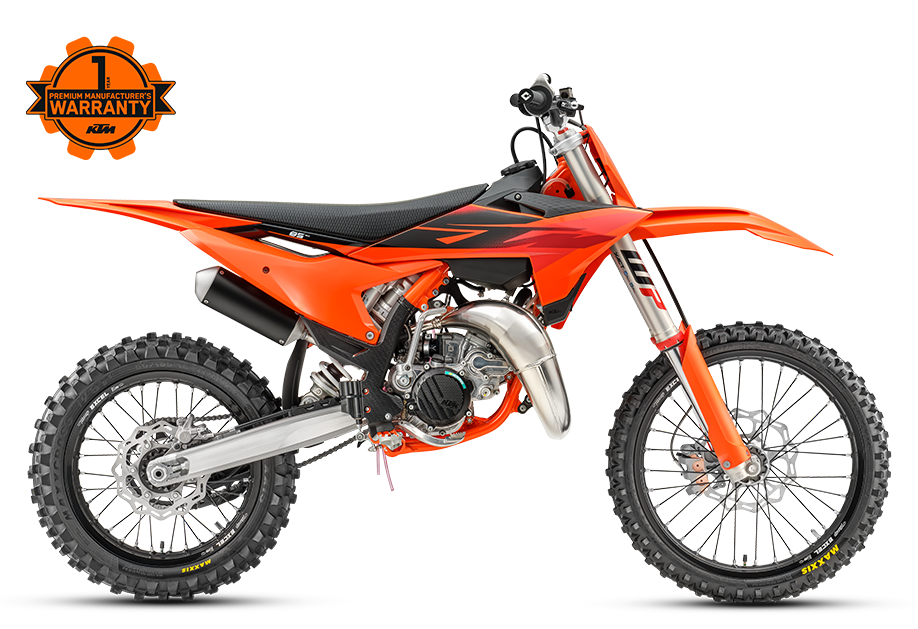

2027 KTM 85 SX SX 17/14

STEP INTO THE BIG LEAGUES

The last step awaits. The KTM 85 SX 17/14 is ready to raise the speed for you. Developed on track and at an international level, the KTM 85 SX 17/14 boasts significantly enhanced handling, searing power delivery and proven READY TO RACE DNA through its components and pedigree. You spoke, we listened. We developed. Now continue the journey. Fast.

ENGINE

• Design: 1-cylinder, 2-stroke engine
• Displacement: 84.9 cm³
• Transmission: 6-speed
• EMS: KEIHIN PWK 28
• Engine oil: Motorex Formula 4T 15W/50
• Clutch primary drive teeth: 64
• Primary drive: 20:64
• Clutch: Wet, multi-disc clutch, Formula hydraulics
• Engine cylinder: Single cylinder
• Engine stroke: 2-stroke

CHASSIS

• Frame design: Central-tube frame with double-cradle
• Front brake: Disc brake
• Rear brake: Disc brake
• Rear subframe design: Aluminium / Polyamide glass fibre
• Chain: 428, Non-sealed

SUSPENSION

• Front suspension: XACT 43 WP upside-down fork, Ø 43 mm
• Rear suspension: XACT WP PDS mono shock
• Suspension travel (front): 278 mm
• Suspension travel (rear): 289 mm
• Front suspension adjustment: Compression and rebound adjustable
• Rear suspension setting: Preload adjuster

DIMENSIONS

• Seat height: 845 mm
• Ground clearance: 308 mm
• Tank capacity: 5.4 L
• Weight (without fuel): 68 kg
