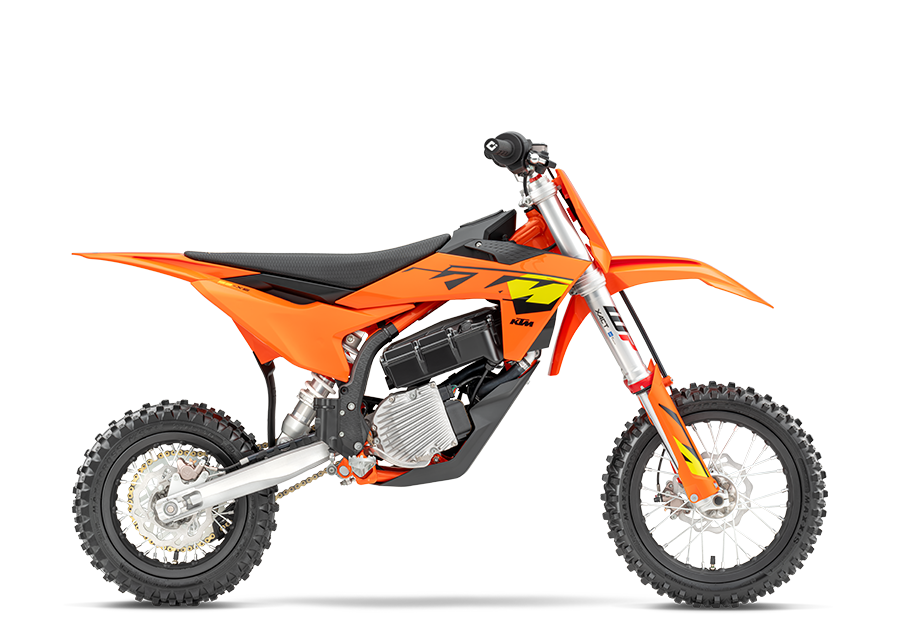

2027 KTM SX-E 5

LEADING THE CHARGE

The KTM SX-E 5 represents the latest generation of advanced all-electric mini-crossers, aimed at both beginner and competitive junior racers. Setting the benchmark in adjustable ergonomics, the KTM SX-E 5 is a high-quality, real-world READY TO RACE alternative to the petrol-powered 50 cc engine. The KTM SX-E 5 is not a toy: this is a bona fide platform for juniors who are finding all the joys of having a throttle in their right hand without the complications of emissions, complex maintenance, and noise. Whether riding, practicing, or racing, the fresh KTM SX-E 5 is both everything they ever wanted and everything they'll ever need - proudly designed, developed, and produced in Austria.

ENGINE

• Electric motor: 48 V - BLDC motor with outer rotor
• Max power: 5 KW / 3,900 RPM
• Torque: 13.8 Nm
• Max motor speed: 6000 RPM
• Battery capacity: 21 Ah
• Charging time 100%: 70 minutes
• Rated output: 2 KW / 3,200 RPM
• Secondary gear ratio: 8:46
• Traction battery: Lithium-Ion KTM Powerpack
• Charger line voltage: 80-240 V/50-60 HZ
• Charging power: 900 W
• Charging time 80%: 45 minutes

CHASSIS

• Frame design: Chrome-Molybdenum steel central-tube frame
• Rear subframe design: Glass fibre reinforced plastic
• Handlebar: Tapered aluminium Ø 28/22/18 mm
• Front brake: Disc brake
• Rear brake: Disc brake

• Front brake disc diameter: 160 mm
• Rear brake disc diameter: 160 mm

• Wheels: 1.5 X 12"; 1.6 X 10"

• Tyre width (front): 60
• Tyre height (front): 100
• Tyre width (rear): 2.75
• Chain: 415, non-sealed
• Steering head angle: 66 °

SUSPENSION

• Front suspension: XACT 35 WP upside-down fork, Ø 35 mm
• Rear suspension: XACT WP Monoshock
• Suspension travel (front): 205 mm
• Suspension travel (rear): 193 mm
• Fork offset: 22 mm

DIMENSIONS

• Seat height: 682 mm
• Wheelbase: 1028 ± 10 mm
• Ground clearance: 259 mm
